Waterproof Polyurea Spray Machine 8Kg/Min Spray Insulation Equipment

Ask Lasest Price
Brand Name :	RongXing
Model Number :	A300
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T, L/C, D/A, D/P, Western Union, paypal,credit card
Supply Ability :	100 set/month
Delivery Time :	5-10 working days

Add to Cart

Product Details
Company Profile

Waterproof Polyurea Spray Machine 8Kg/Min Spray Insulation Equipment

High pressure pneumatic polyurethane spray machine in 380V or 220V for Euorpe market

Spec:

Standard Technical Parameters

The ratio of raw material 1:1	Standard heating hose length 15m
Max working pressure 20Mpa	Heating hose max power 3200W
Max fluid temperature 80ºC	Voltage 220V/380V
Max output 8kg/min	Clean mode Self-clean by air
Heater power 2800W×2	Pneumatic source 0.5-0.8Mpa 1m³/min

Standard Configuration

Mainframe 1 set	Self-cleaning spray gun 1 set
Transfer pump 2 sets	Heating hose 15m
Transfer pump hose 2.5m	Gun hose 1.5m
Spare parts and Tools 1 set	English user manual 1 set

Shipping Parameters

Body size (L×W×H) 600×600×1260mm

Packing size (L×W×H) 900×900×1500mm

Gross weight 175kg

Describe:

1. The equipment has obtained CE certification, safe and environmental protection.

2. Having the proprietary property rights in design and production, several national patents have been applied and approved.

3. The perfect coaxial structure design of the horizontal booster pump reduces greatly the abrasion of the sealing. There is no pressure difference during operation and the commuting pressure fluctuation value is ideal and stable.

4. The lubricant inside the anti-solidifying lubricating cylinder circulates with high speed so that the leaked material and impurities could be brought away rapidly. The shaft for black material is always kept in the lubricant avoiding the crystallization.

5. The delicate coupling structure is easy for the dismounting of the booster pump during the maintenance. When necessary, the complete unilateral raw material pump can be replaced to change the proportion of the raw material.

6. The pneumatic commuting control assembly is simple in structure and reliable in operation, and enables the pump body operating normally during the lack of electricity.

7. The design and application of the reset function when shut down realizes the dual protection.

8. The dual filters of the equipment for both high and low pressure and the filter of the nozzle realize the triple filtration protection for the raw material and reduce the blocking.

9. The special armoured temperature sensor inside the heater can collect the temperature signal at any time, hence the overshooting value for heating is well controlled.

Use area:

Building exterior wall, cold storage, automobile, chemical storage tank, workshop workshop, grain depot, farm shed and so on.

Picture:

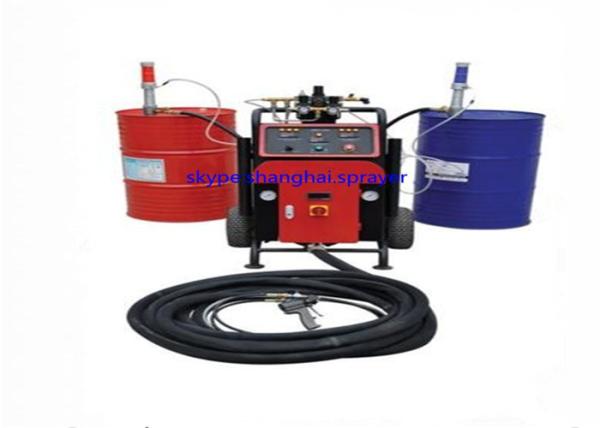

Waterproof Polyurea Spray Machine 8Kg/Min Spray Insulation Equipment
