380V/220V polyurethane spray and perfusion machine,polyurethane spray foam machine for wall
Spec:
Polyurethane spray machine H30
The standard machine is 380V/50HZ,3-PH,4 LINES, we could make the machine as customer wanted Voltage and Hertz and Phase.
Standard Configuration and Technical Data:
| Main equipment: | 1 set |
| Nozzle | 1 pc |
| Heating tube per group: | 15 meter (standard) |
| Max. length (optional) | 90 meter |
| Short tube with nozzle per group: | 1.5 Meter |
| Feeding pump | 2 pieces |
| Proportion of raw material: | 1:1 standard fixed ratio (changeable ratio can be selected) |
| Viscosity range of raw material: | 200-1000 CPS (under operation temperature) |
| Output of raw material | 2-7.8 kg/min |
| Electrical source: | 3 phase 4 wire, 380V 50HZ 14A×3+16A or 220V |
| Compressed air: | 0.5~0.8Mpa 1m3/min |
| Output pressure of raw material per group: | 5-10Mpa |
| Material Heater power: | 3500W*2 |
| Pipeline insulation heating power | 3000W |
| Gross weight | 235KG |
| Packing size | 1000*900*1550mm |

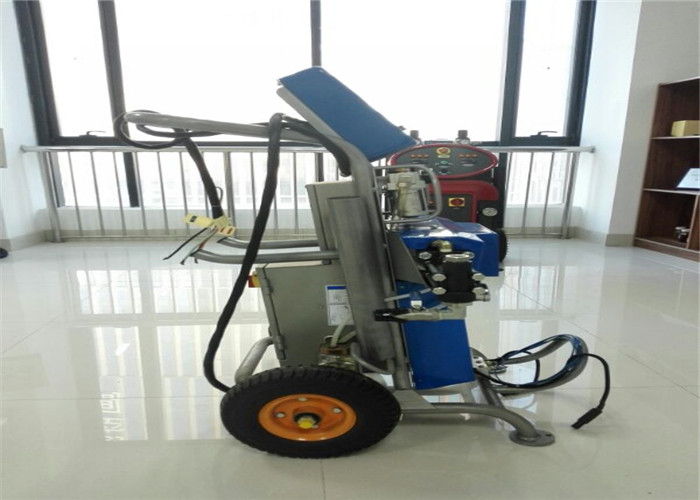

Picture:
|
|
