CE Material Pressure Regulators With Piston Grease Pump Pressure Rlief Valve

Material Pressure Regulators With Piston ,Grease Pump Pressure Rlief Valve

Grease Pump Pressure Rlief Valve :

Material pressure regulators reduce the pressure of the delivered material to the required working pressure. Apart from reducing pressure (main function), these valves compensate the pulsations which occur during the material delivery with piston pumps due to the changeover position of the pump. Such pulsations would cause a short-time drop of pressure and lead to a slight reduction of the material flow. In case of small metering quantities, this might impair product quality as especially for such applications an absolutely consistent material flow must be ensured.

Product features :

Manually adjustable ,Easy maintenance

Ball sealing , Valve seat sharp edged

Technical data :

Model	RV-100
Oil inlet thread	inner thread G1 / 4
Oil inlet pressure	10-40mpa
Oil outlet pressure	5-15mpa
Oil outlet thread	external thread G1 / 4

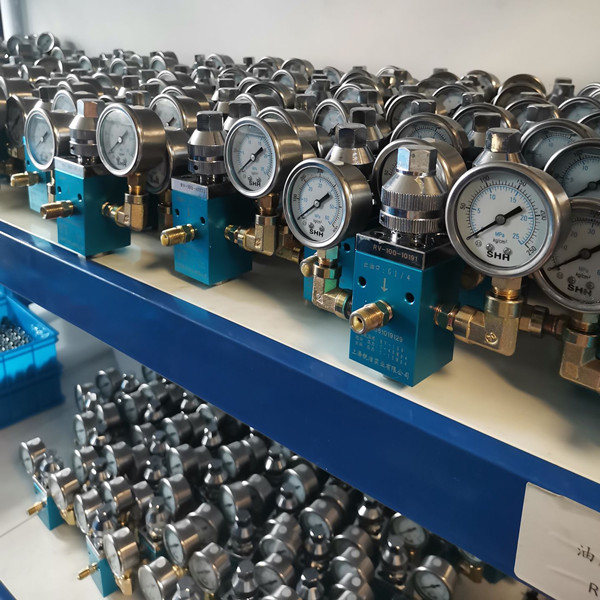

Industrial grease pressure reducing valve:

Model: RV-100

The oil inlet is at the back of the oil pressure gauge, and the oil outlet is at the front of the oil pressure gauge;

Oil inlet thread: inner thread G1 / 4

Oil inlet pressure: 10-40mpa

Oil outlet pressure: 5-15mpa

Oil outlet thread: external thread G1 / 4
