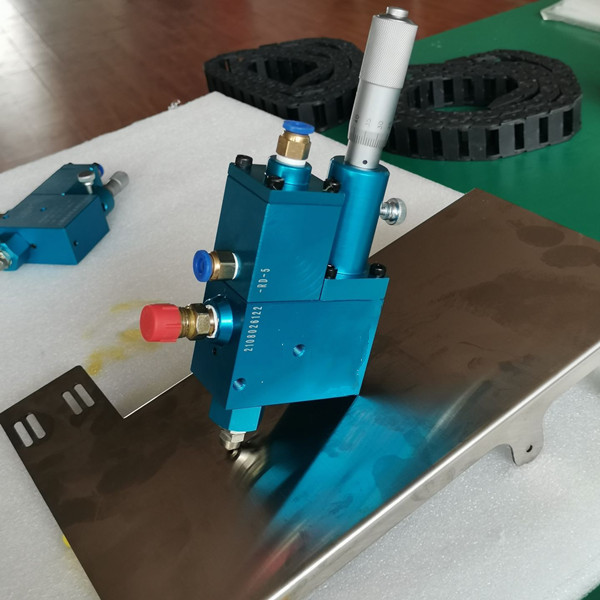

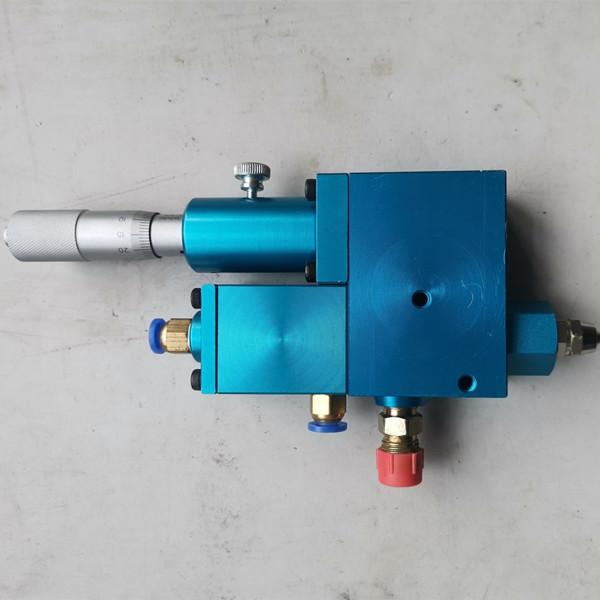

0.01CC To 1000CC Grease Metering Valve For High Viscosity Grease Pump

Quantitative Valve For High Viscosity Grease Pump , Grease Metering Valve

Chamber metering valves :

Filling: The valve is in the initial position when the control pressure applied on the compressed-air

connection. The valve needle in the control valve is in the upper position, thus closing the material outlet. The material access to the metering chamber is open. The material enters the control valve by means of the material pressure and flows into the metering chamber. Due to the contact surface of the piston, the piston executes an upward stroke. The metering chamber fills up automatically to the pre-defined volume.

Metering: Material is metered when the compressedair connection of the valve is charged with compressed air. The valve needle executes a downward stroke, thus closing the material access to the metering chamber. The material outlet opens. The material pressure has an effect on the piston step, which enters the metering chamber and feeds the material to the material outlet. An accurate metering volume is discharged. The snuff back effect carried out during the refilling, prevents the material from dripping after metering is finished.

Product features :

Double acting chamber metering valve , Use for metering shot or dot applications

High maximum working pressure , Low maintenance

Snuff back effect to prevent material dripping

Technical data :

Technical data


Part no.	RD-01	RD-1	RD-5	RD-10	RD-30	RD-150
Metering range	0.01-0.1ML	0.1-1.5ML	0.5-6ML	0.5-13ML	1-30ML	25-150ML
Material input pressure min.	40Bar	40Bar	40Bar	40Bar	40Bar	40Bar
Material input pressure max.	180Bar	180Bar	180Bar	180Bar	180Bar	180Bar
Material inlet connection	G1/4	G1/4	G1/4	G1/4	G1/4	G1/4
